Backing Plate Kit with Dry Carbon Duct for 2.5" Hose, Set of 2 – WRX

Weight:

SKU:

Barcode:

Collections:

Product type: Backing Plate Kit with Dry Carbon Duct for 2.5" Hose, Set of 2 – WRX

Vendor: Verus Engineering

Tags: 2, 2011 wrx, 2012 wrx, 2013 wrx, 2014 wrx, 2015 sti, 2015 wrx, 2016 sti, 2016 wrx, 2017 sti, 2017 wrx, 2018 sti, 2018 wrx, 2019 sti, 2019 wrx, 2020 sti, 2020 wrx, 2021 sti, 2021 wrx, 5, backing, carbon, dry, duct, for, hose, kit, of, plate, set, with, wrx

Availability:

$253.00

Backing Plate Kit -  2015+ (VA) WRX/STI & 2011-2014 (GR/GV) STI

OVERVIEW

The Verus Engineering Backing Plate kit is constructed from a stainless backing plate for durability and a properly formed and located dry carbon duct that directs air into the center of the rotor.  This is a great start to a do it yourself brake cooling kit for the VA WRX/STI.

Increase endurance, life expectancy, resistance to brake fade, and resistance to boiling brake fluid by hooking up a 2.5" silicone brake hose to these backing plates and running cool air through the rotors.

Designed to work with OEM and aftermarket big brake kits, this is a must for those looking to get the most from their brakes. Stainless hardware throughout and hard anodized aluminum spacers ensure the kit will remain rust-free for the life of the units.

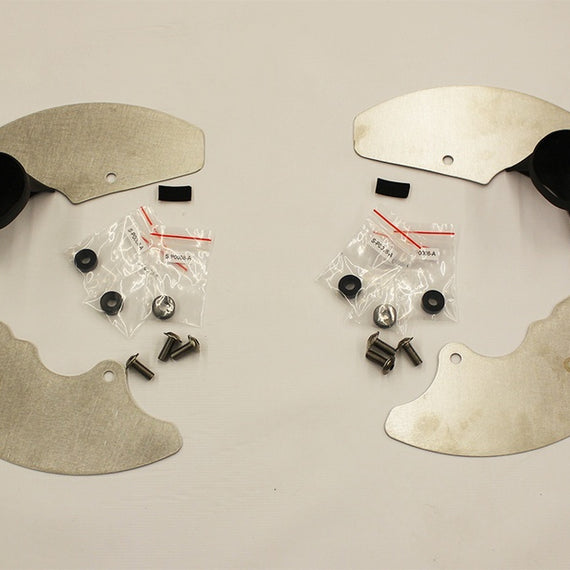

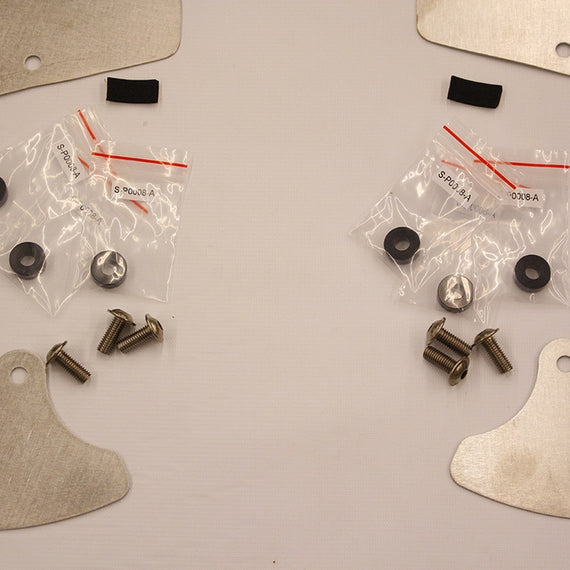

WHAT IS INCLUDED

  • Backing Plate, Includes Carbon Duct, Left-Hand

  • Backing Plate, Includes Carbon Duct, Right-Hand

  • Hardware Kit, Includes All Hardware Necessary for Install

PART NUMBER

A0143A

INSTALL AND DATA


INSTALL MANUAL








FEATURES

 Direct Air Into the Center of the Rotor

Further Encourages Airflow Into Center of Rotor with Large Stainless Backing Plate

Standard 2.5" Brake Duct Hoses Fit on Duct



SPECIFICATIONS

  Stainless Backing Plate

Dry Carbon Air Duct

Hard-Anodized Spacer

All Necessary Stainless Hardware Included



Foam for Wheel Sensor Wire Protection

Made in the U.S.A.




SCIENCE

Via tuft testing and thermal image testing, it’s quite clear that the brake cooling kit is highly effective even when used with the OEM rotors which have small vanes when compared to those of big brake kits. Smaller vanes will hurt flow and cooling due to the reduced size. With the brake cooling kit, the rotors remained much cooler directly after applying the brakes as well as after a short drive without using the brakes. It is also apparent that at high rates of speed, the brake cooling kit does significantly more than at lower speeds. This makes a lot of sense as the kit works by using frontal ambient air and funneling it into the center of the rotor. At higher speeds, pressure and flow rates are greater than at low speeds. We have heard reports back from customers tracking their cars having reduced brake fade, reduced rotor cracking, improved pad wear, and reduced brake fluid boiling. As a result, this is a great kit to help keep brake components at an appropriate temperature during competition and/or track days.
